ICF Pool Construction in 30 Steps Lessons Special Considerations

Special Considerations

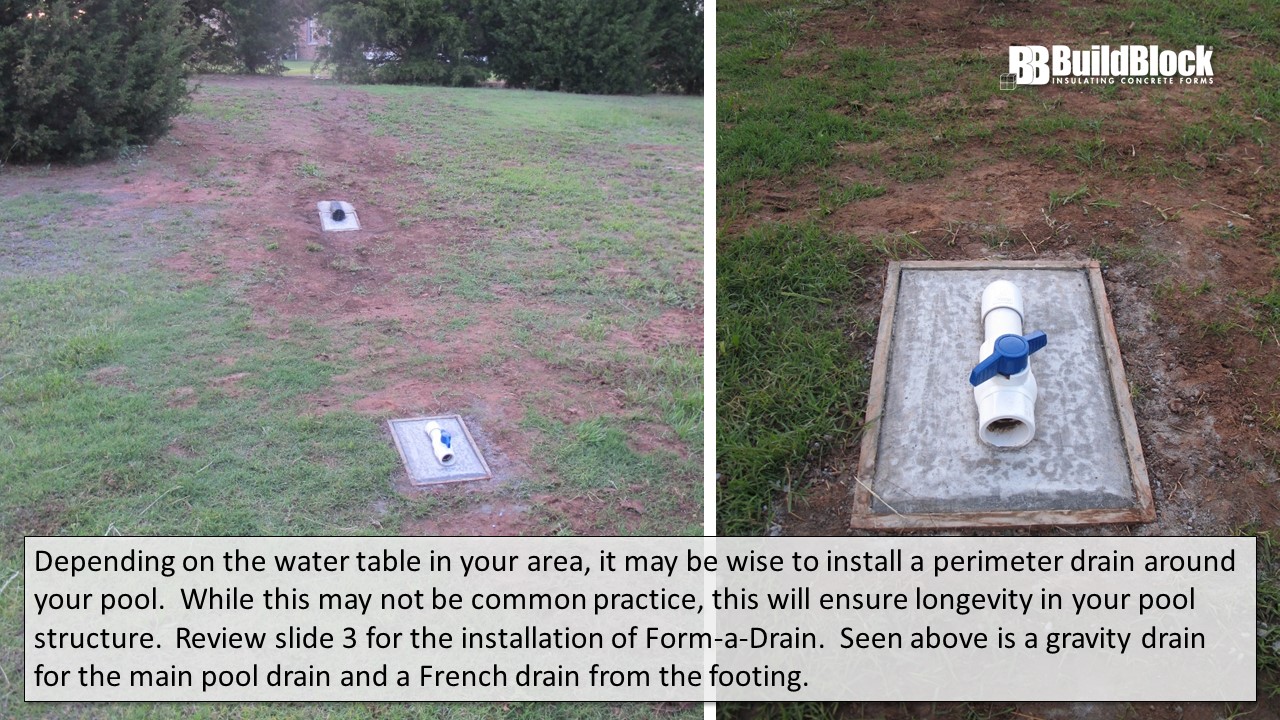

Perimeter Drain

Depending on your local conditions, it may be best to install a perimeter drain around your pool. Review slide 3 for more information on the installation of Form-a-Drain.

Other Considerations: Depending on the water table in your area, it might be wise to install a perimeter drain around your pool. While htis may not be common practice, this will ensure longevity in your pool structure. Review slide 3 for installation of Form-A-Drain. Seen above is a gravity drain from the main pool drain and a French drain from the footing.
Other Considerations: Depending on the water table in your area, it might be wise to install a perimeter drain around your pool. While htis may not be common practice, this will ensure longevity in your pool structure. Review slide 3 for installation of Form-A-Drain. Seen above is a gravity drain from the main pool drain and a French drain from the footing.

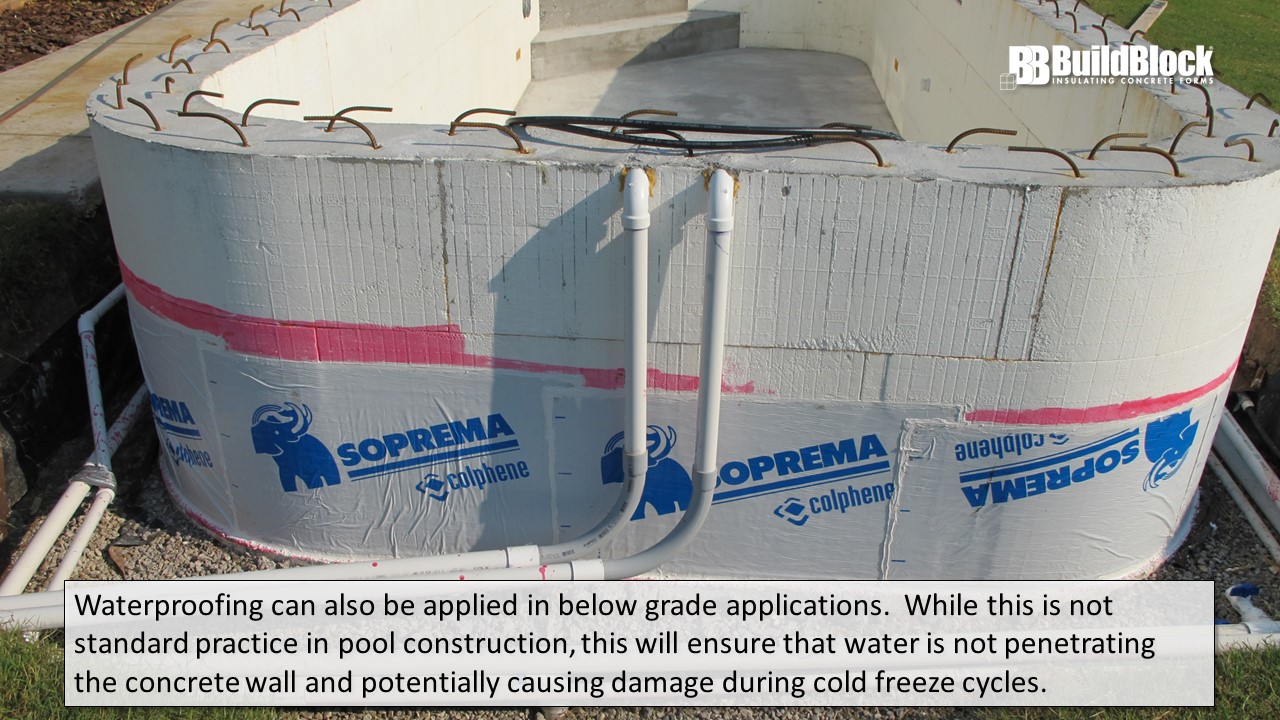

Waterproofing

While not a common practice in pool construction, waterproofing below grade pool applications can ensure that water does not penetrate the concrete wall and potentially cause water damage during freeze cycles.

Other Considerations: Waterproofing can also be applied in below grade applications. While this is nore standard practice in pool construction, this will ensure that water is not penetrating the concrete wall and potentially causing damage during cold freeze cycles.
Other Considerations: Waterproofing can also be applied in below grade applications. While this is nore standard practice in pool construction, this will ensure that water is not penetrating the concrete wall and potentially causing damage during cold freeze cycles.

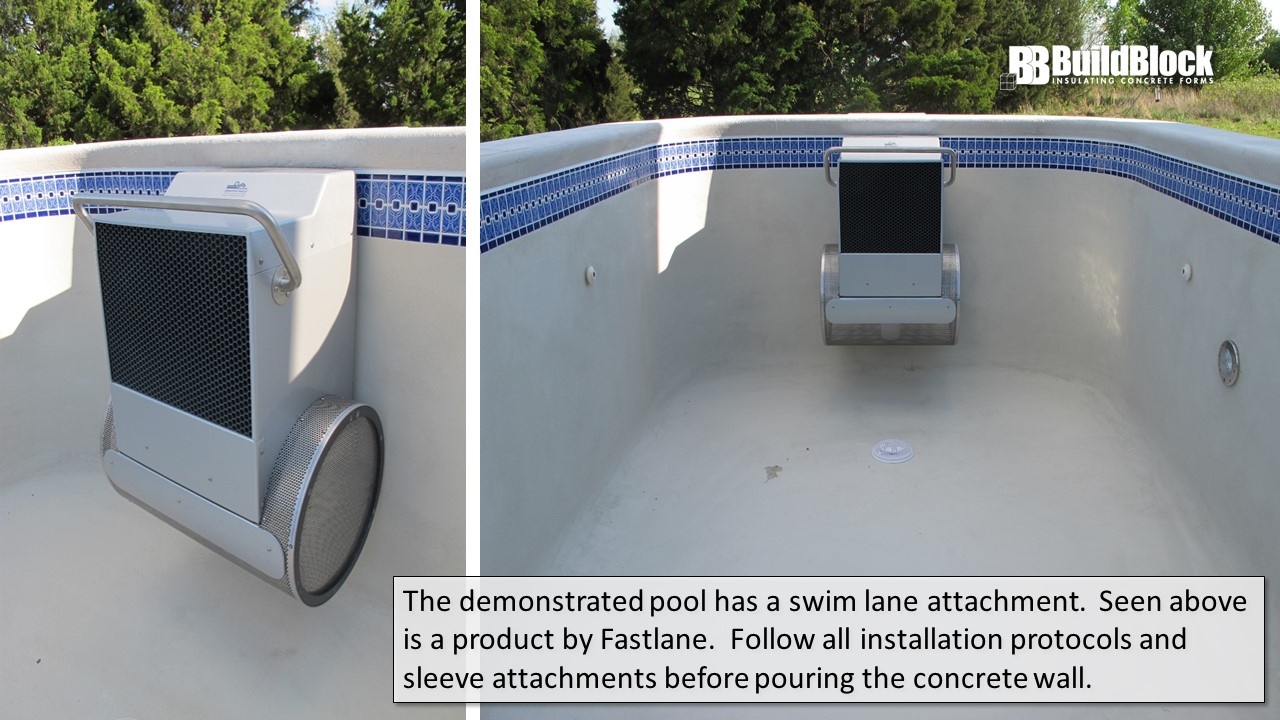

Other Attachments

The demonstrated pool features a swim lane attachment. Seen above is a product by Fastlane. Be sure to follow all installation and bracing protocols before pouring concrete into the wall.

Special Attachments: The demonstrated pool has a swim lane attachment. Seen in this image is a product by Fastlane. Follow all installation protocols and sleeve attachments before pouring the concrete wall.
Special Attachments: the demonstrated pool has a swim lane attachment. Seen in this image is a product by Fastlane. Follow all installation protocols and sleeve attachments before pouring the concrete wall.
