ICF Construction in 25 Steps Lessons Step 17: Place Rebar

Step 17: Place Rebar

As ICF walls are stacked, horizontal rebar should be placed in the forms as specified. Horizontal bars should alternate either side of the center of a wall creating a vertical chase between the alternating horizontal bars.

Check that lintel stirrups are properly placed where required.

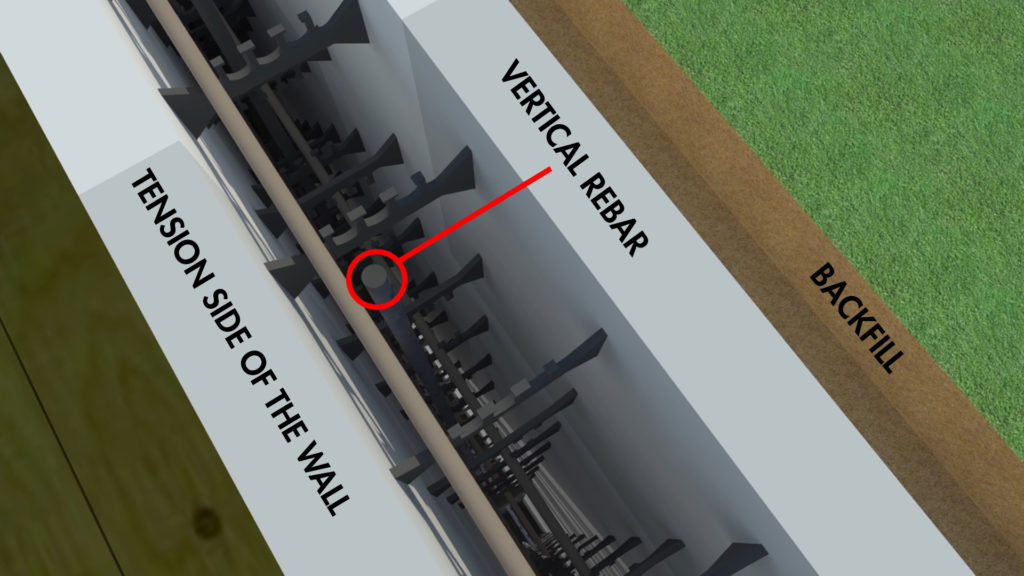

Vertical rebar should be placed in the vertical chase created by horizontal rebar on the tension side of the wall
Vertical rebar should be placed in the vertical chase created by horizontal rebar on the tension side of the wall

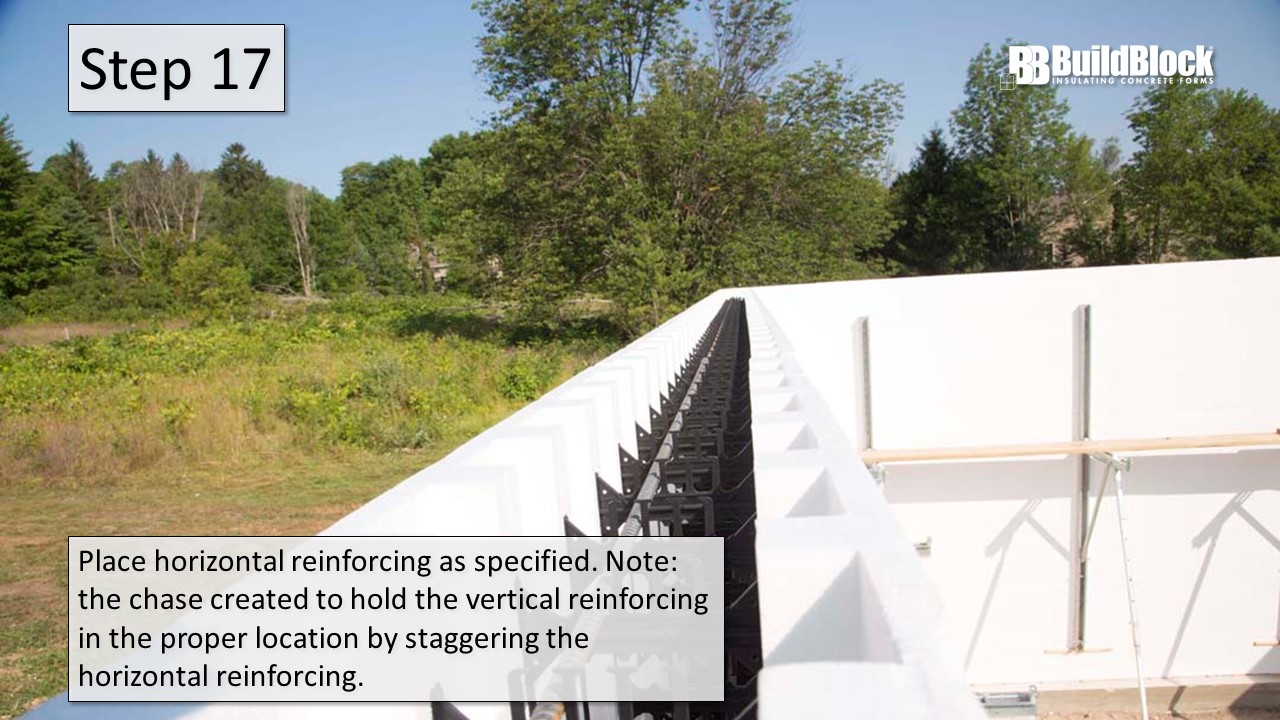

Step 17: Place horizontal reinforcing as specified. Note: the chase created to hold the vertical reinforcing in the proper location by staggering the horizontal reinforcing.
Step 17: Place horizontal reinforcing as specified. Note: The chase created to hold the vertical reinforcing in the proper location by staggering the horizontal reinforcing.
