Basic ICF Installation Pre Pour Inspection Inspect Penetrations, Knockouts, and Hangers

Penetrations, Knockouts, and Hangers

1. Verify that all penetrations are in the proper place and that sleeves are secured.

2. Add additional support if penetrations cut through webs or compromise the structural integrity of the block.

Brace and strap appropriately around penetrations, especially when there are multiple penetrations
Brace and strap appropriately around penetrations, especially when there are multiple penetrations

3. Look at all joist hangers, inside and out, to ensure they are installed at correct locations, stable, and firmly secured.

4. Re-check your brick ledge forms, bracing, stirrups, and reinforcement.

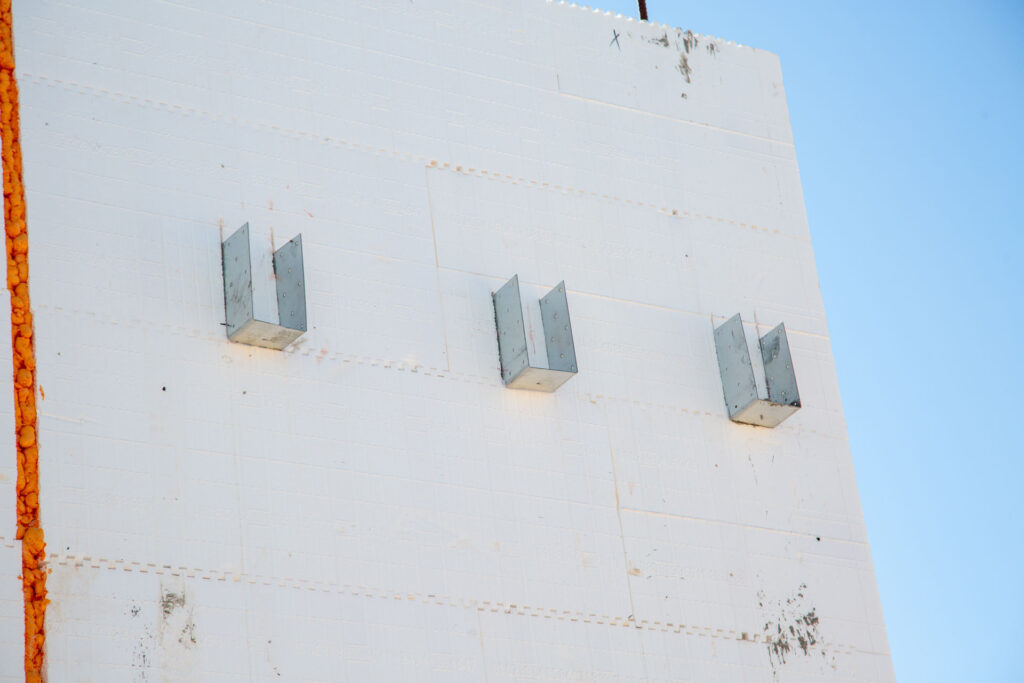

joist hangers placed in an ICF wall
Joist hangers placed in an ICF wall.
