Basic ICF Installation Trades and Finishes Finding Attachment Points

Finding Attachment Points

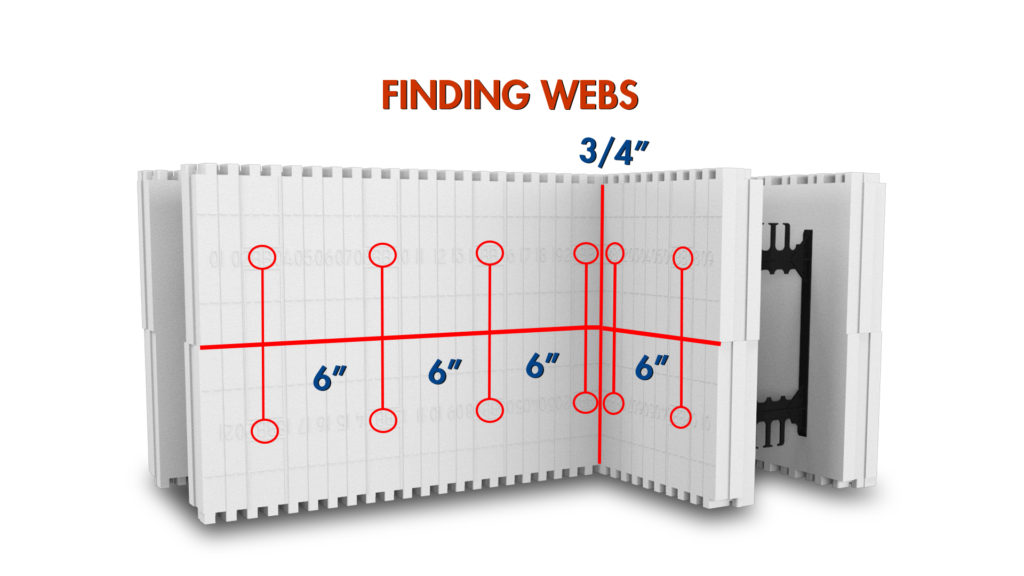

1. Begin at a corner and measure every 6-inches to find the attachment points.

Finding webs on an inside corner
Finding webs on an inside corner

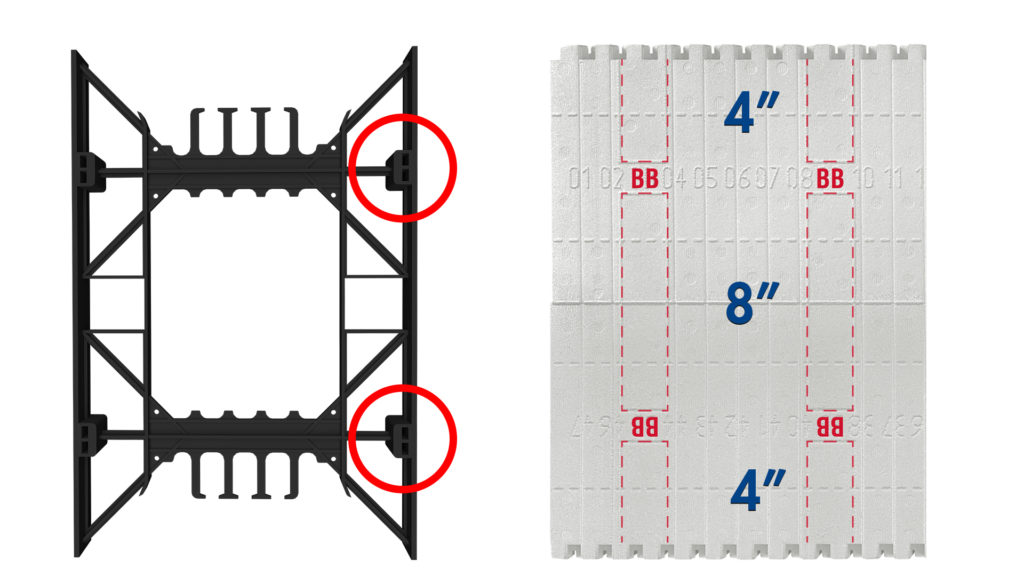

2. High-Density Attachment Points are indicated by a BB in on the block. These are placed 4-inches from the top or bottom of the block and 8-inches apart. This means that every 8-inches vertically there is a high-density attachment point.

BuildBlock attachment spacing
BuildBlock attachment spacing
